The flange bolt hole utility inserts flange bolt holes onto the current drawing sheet. It supports three bolt types.

Download
Flange Bolt Hole Utility, Evaluation Version 0.1
92Kb

Hex head bolts, cap screws and CSK screws are supported.

Functionality :

In this utility ....

• The flange bolt hole is split into the top and bottom of the flange connection.
• The flange bolt hole is defined by selection from a dialog box.
• Three user selected points are required for each bolt hole.

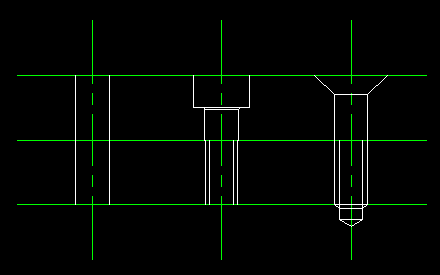

• The top of the flange can one of
• Through hole.
• Counter bored hole.
• Counter sunk hole.
• Bottom of the flange can be one of
• Through hole.
• Threaded hole.
• Blind threaded hole.
