Text Utilities

*  EVALUATION VERSION v0.1 *

These utilities perform tasks associated with the TEXT and MTEXT entities within AutoCAD. They consist of two utilities; one places a “box” around text, the other aligns text along a horizontal or vertical line.

bb070

These utilities simplify some operations performed onto TEXT and MTEXT entities within AutoCAD.




Movie Demonstration
of Boxtext Utility



Movie Demonstration
of Altext Utility




Zipfile
ZIP file
Mb

AVIFile03
AVI file
Mb

Zipfile
ZIP file
Mb

AVIFile03
AVI file
Mb

Download
Boxtext Utility,
Version 0.1
60Kb
BOXTEXT102

Functionality :

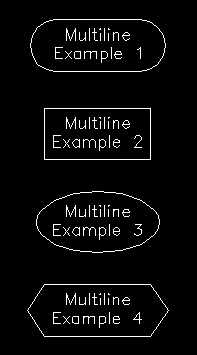

  • Places a “box” around text. Supports both TEXT and MTEXT entities.
  • Nine different shapes of boxes can be used.
    • Rectangle
    • Hexagon
    • Irregular Hexagon
    • Diamond
    • Square
    • Thin Diamond
    • Circle
    • Ellipse
    • Tablet
  • Kerf around text set by user.
  • Thickness of the box set by the user.

Download
Altext Utility,
Version 0.1
45Kb
BOXTEXT202

Functionality :

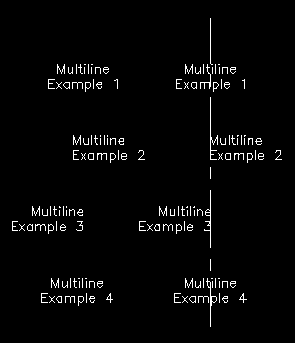

  • Aligns TEXT and MTEXT entities either vertically or horizontally.
