Surface Texture

*  EVALUATION VERSION v0.1 *

The surface texture symbol utility creates insertion blocks representing surface texture symbols onto the current drawing sheet. It supports a large range of options and surface texture types.

Download
Surface Texture Symbol Utility, Evaluation Version 0.1
43Kb

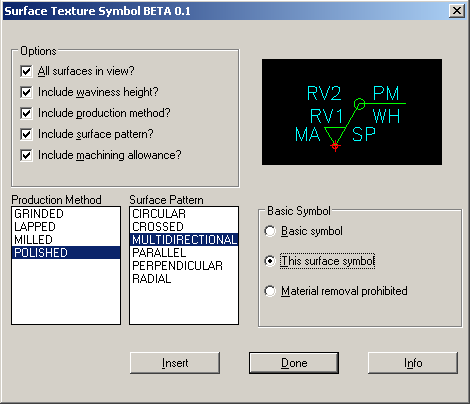

DDST_Dialog

Functionality :

In the evaluation version of this utility ....

  • The surface texture block is drawn on the current UCS at a specified point on the "0" layer.
  • Only basic symbol and maximum and minimum surface texture finish supported.

In the full version of this utility ....

  • The surface texture details are selected via dialog box.
  • Supports inclusion of;
    • Waviness option.
    • Production method option.
    • Surface pattern option.
    • Machining allowance option.
  • Production methods loaded from customisable file.
  • Three symbol options available;
    • Basic symbol.
    • Surface symbol.
    • Material removal prohibited.


DDST01

Example of surface texture symbol created by restricted version.

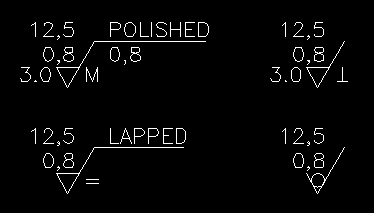

DDST0202

Examples of surface texture symbol available in the full version.
