Functionality :

In the evaluation version of this utility ....

• The weld block is drawn on the current UCS at a specified point and on the "0" layer.

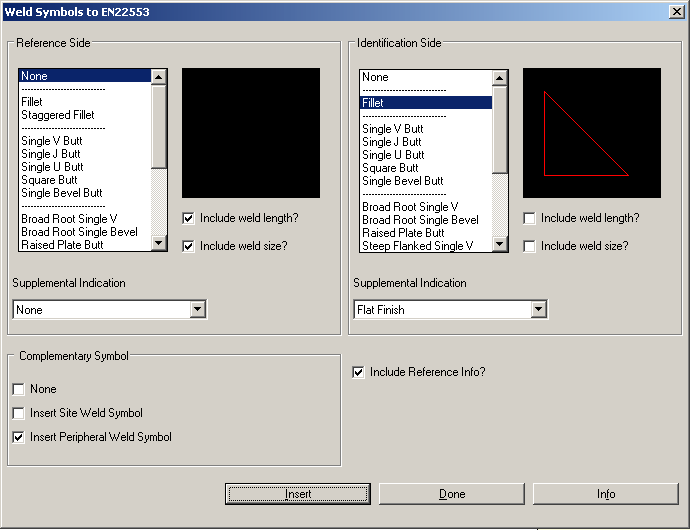

• The symbol details are selected via a dialogue box.
• Dialogue box settings are retained by system.
• Fillet and staggered welds are supported with weld size and weld length.
• Site weld and peripheral weld addition to the weld symbol supported.

In the full version of this utility ....

• Much larger selection of welding symbols supported  including;
• Single V Butt
• Single J Butt
• Single U Butt
• Single Bevel Butt
• Broad Root Single V
• Broad Root Single Bevel
• Raised Plate Butt
• Steep Flanked Single V
• Steep Flanked Single Bevel
• Plug
• Spot
• Seam
• Edge
• Surfacing
• Permanent Backing Strip
• Removeable Backing Strip
• Allowance for supplementary indications;
• Smooth blended face
• Flat finish
• Convex
• Concave
• Flush finish
• Allowance for the inclusion of reference information.

Example of weld symbol created using restricted version of utility.

Example of weld symbols created using restricted version of utility.
